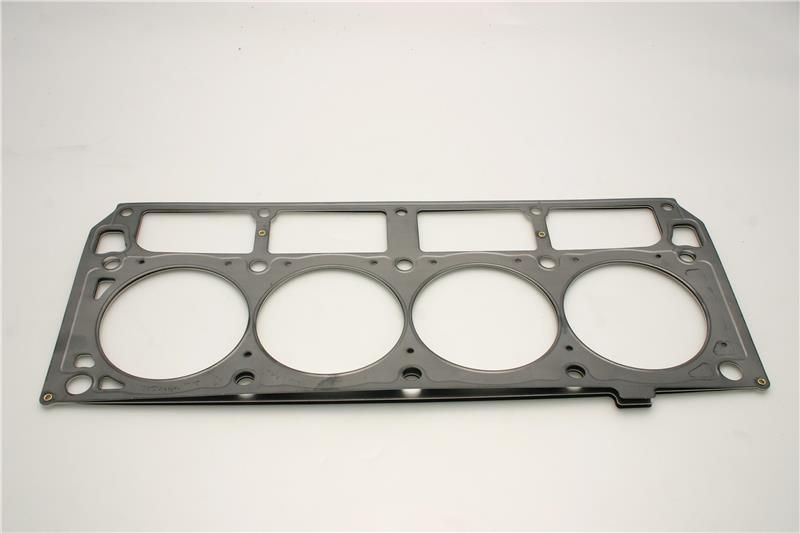

Cometic Gasket Head Gaskets (C5317-027)

Cometic Gasket C5317-027 Head Gaskets - Cometic GM LS1 SB 4.130 inch Bore .027 inch MLS Head Gasket for a 1997-1997 Chevrolet Camaro RS, 1997-2002 Chevrolet Camaro Base, 1997-2002 Chevrolet Camaro Z28, 1998-2002 Chevrolet Camaro Z28 SS, 2010-2015 Chevrolet Camaro SS, 1997-2013 Chevrolet Corvette Base, 1998-1998 Chevrolet Corvette Indianapolis 500 Pace Car, 2001-2004 Chevrolet Corvette Z06, 2003-2003 Chevrolet Corvette 50th Anniversary Edition, 2003-2003 Chevrolet Corvette 50th Anniversary Edition Pace Car, 2010-2013 Chevrolet Corvette Grand Sport, 2014-2017 Chevrolet SS Base and 2004-2007 Cadillac CTS V.

Image(s) for display purposes only. Actual product may vary.

Manufacturer: Cometic Gasket

Product: Cometic Gasket Head Gaskets

Part Number: C5317-027

UPC: 191070061029

$106.00

Free Shipping (Continental US)

New with manufacturer warranty

Availability: SHIPS FROM MANUFACTURER
Shipping times vary by Manufacturer
(Can take days or weeks, contact us for an ETA)

Have a question regarding this product? Contact us.

Fitment:

NOTES: Cometic GM LS1 SB 4.130 inch Bore .027 inch MLS Head Gasket

Years	Make	Model	Trim
1997 - 1997	Chevrolet	Camaro	RS
1997 - 2002	Chevrolet	Camaro	Base
1997 - 2002	Chevrolet	Camaro	Z28
1998 - 2002	Chevrolet	Camaro	Z28 SS
2010 - 2015	Chevrolet	Camaro	SS
1997 - 2013	Chevrolet	Corvette	Base
1998 - 1998	Chevrolet	Corvette	Indianapolis 500 Pace Car
2001 - 2004	Chevrolet	Corvette	Z06
2003 - 2003	Chevrolet	Corvette	50th Anniversary Edition
2003 - 2003	Chevrolet	Corvette	50th Anniversary Edition Pace Car
2010 - 2013	Chevrolet	Corvette	Grand Sport
2014 - 2017	Chevrolet	SS	Base
2004 - 2007	Cadillac	CTS	V

Description:

GM LS1/LS2/LS3/LS6 Gen-3/4 Small Block V8 .027in. MLS Cylinder Head Gasket; 4.130in. Bore.
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.027". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.027". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
