ACT NX4-HDG4 HD/Race Clutch Kits - ACT 1991 Nissan 240SX HD/Race Sprung 4 Pad Clutch Kit for a 1991-1992 Nissan 240SX LE, 1991-1993 Nissan 240SX Base and 1991-1994 Nissan 240SX SE.
Manufacturer: ACT
Product: ACT HD/Race Clutch Kits
Part Number: NX4-HDG4
UPC: 842385005467
MSRP: $623.00
$505.00
Free Shipping (Continental US)
New with manufacturer warranty
Availability:
OUT OF STOCK
SPECIAL ORDER
Have a question regarding this product? Contact us.
Fitment:
NOTES: ACT 1991 Nissan 240SX HD/Race Sprung 4 Pad Clutch Kit
| Years | Make | Model | Trim | ||
|---|---|---|---|---|---|
| 1991 - 1992 | Nissan | 240SX | LE | ||
| 1991 - 1993 | Nissan | 240SX | Base | ||
| 1991 - 1994 | Nissan | 240SX | SE |
Description:
Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle; Moderate friction life, extended by ACT's exclusive diaphragm design; Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance; Recommended for high horsepower street or race use; 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability. HD/Race Sprung 4 Pad.

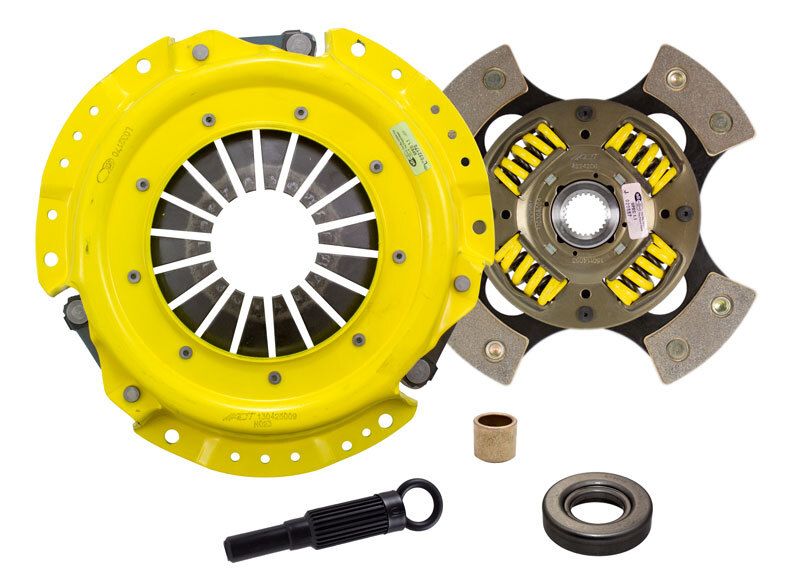

NX4-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
NX4-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
