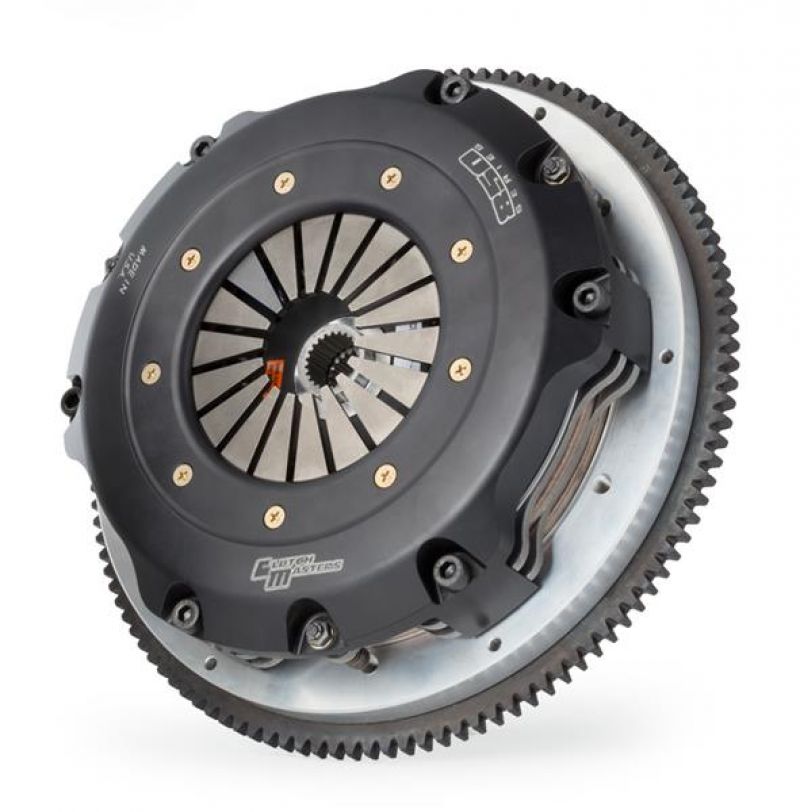

Clutch Masters 15017-TD8S-SW 850 Twin Disc Clutch Kits - Clutch Masters 04-11 WRX STi 2.5L 6 spd T FX850 Twin Disc Street Clutch Kit w/ Steel FW Pull-Type for a 2004-2014 Subaru Impreza WRX STI, 2007-2014 Subaru Impreza WRX STI Limited, 2010-2010 Subaru Impreza WRX STI Special Edition, 2015-2015 Subaru WRX STI Launch Edition, 2015-2017 Subaru WRX STI Base, 2015-2017 Subaru WRX STI Limited and 2016-2016 Subaru WRX STI Series.HyperBlue.
Image(s) for display purposes only. Actual product may vary.
Manufacturer: Clutch Masters
Product: Clutch Masters 850 Twin Disc Clutch Kits
Part Number: 15017-TD8S-SW
UPC: 15017-TD8S-SW
MSRP: $2,750.00
$2,337.50
Free Shipping (Continental US)
New with manufacturer warranty
Availability:
SHIPS FROM MANUFACTURER
Shipping times vary by Manufacturer
(Can take days or weeks, contact us for an ETA)
Shipping times vary by Manufacturer
(Can take days or weeks, contact us for an ETA)
Have a question regarding this product? Contact us.
Fitment:
NOTES: Clutch Masters 04-11 WRX STi 2.5L 6 spd T FX850 Twin Disc Street Clutch Kit w/ Steel FW Pull-Type
| Years | Make | Model | Trim | ||
|---|---|---|---|---|---|
| 2004 - 2014 | Subaru | Impreza | WRX STI | ||
| 2007 - 2007 | Subaru | Impreza | WRX STI Limited | ||
| 2010 - 2010 | Subaru | Impreza | WRX STI Special Edition | ||
| 2011 - 2014 | Subaru | Impreza | WRX STI Limited | ||
| 2015 - 2015 | Subaru | WRX STI | Launch Edition | ||
| 2015 - 2017 | Subaru | WRX STI | Base | ||
| 2015 - 2017 | Subaru | WRX STI | Limited | ||
| 2016 - 2016 | Subaru | WRX STI | Series.HyperBlue |
Description:
850 SERIES – (8.50” Twin Disc)
The 850 series is a larger diameter assembly, which is designed for high horsepower applications. The 850 Series has a higher holding capacity, less clutch chatter, and a smoother engagement compared to the 725 Series. The 850 series Twin disc will accept one sprung disc creating a slightly smoother engagement compared to two rigid discs
Available Stages:
“Street and Race” (TD8S) – 1 sprung ceramic disc, and 1 fiber tuff rigid disc
“Race” (TD8R) – 1 sprung ceramic disc, and 1 ceramic rigid disc.
Clutch Masters offers custom option when required by utilizing a variety of friction surfaces, discs and pressure ratings to satisfy any need!
Clutch Masters Twin Disc features:
- Components can be purchased separately for economical repair.
- Positive release for ease of high RPM staging and shifting.
- Most have experienced better 4/10's times and averaged hundreds of passes without complications or repair\
All systems include:
- Aluminum Cover Assembly with attached Diaphragm
- Pressure Plate Ring
- Two Discs
- One Mid Plate
- Billet Aluminum Flywheel (Steel available on select applications, call for price)
- Release Bearing (when applicable)
- Pilot Bearing (when applicable)
- Pressure Plate Bolts
Average weight of the entire assembly is over 50% lighter than OEM
Clutch Masters 04-11 WRX STi 2.5L 6 spd T FX850 Twin Disc Street Clutch Kit w/ Steel FW Pull-Type
