Clutch Masters FX500 Clutch Kits (16063-HDB6)

The versatile FX500 System uses either the Power Plus I or Power Plus II Pressure Plate along with a solid center 4 or 6 wing (paddle) Ceramic Button disc. It is designed for maximum holding capacity with no compromises.

Warning: The FX500 is a Solid Hub (rigid) disc that engages and disengages instantly. This is a Race Only clutch.

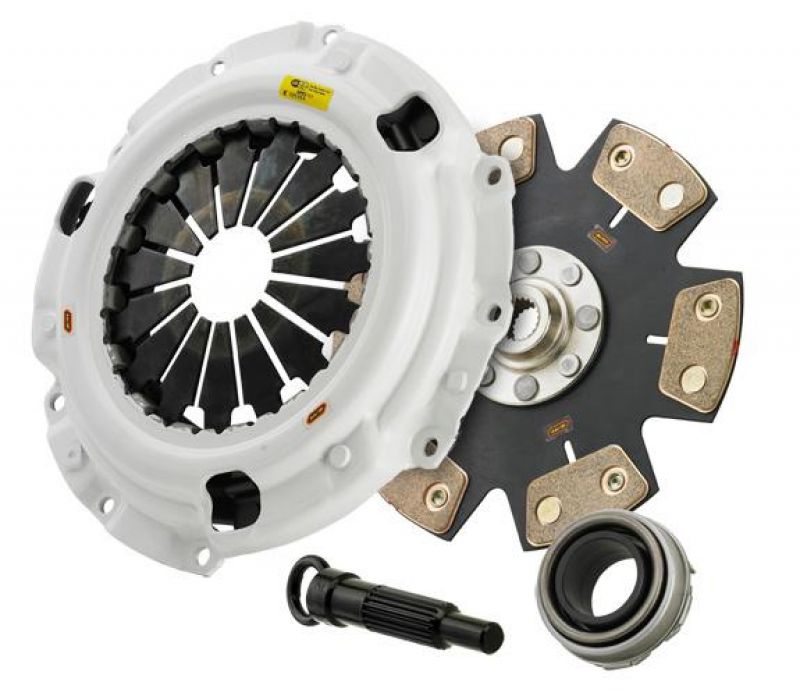

All stages come as a complete kit including disc, pressure plate, throwout bearing (when applicable), pilot bearing (when applicable), and alignment tool. (Individual components available upon request)

----------------------------------------------------------------------------------------------------------------------------------

CLUTCH KIT PART# GUIDE: #####-HDTZ-A
Pressure Plate Codes:
SD - Custom Single Disc (725 or 850) DD - Double diaphragm pressure plate HD - Heavy duty pressure plate	HR - High rev pressure plate TD - Twin Disc
Disc Codes:
00 - Sprung steel-backed organic disc  B4 - 4-puck rigid ceramic disc.  B5 - 5-puck rigid ceramic disc.  B6 - 6-puck rigid ceramic disc.  BL - Rigid full face ceramic disc.  0C - Sprung Organic/Ceramic disc.  C4 - 4-puck ceramic sprung disc.  C6 - 6-puck ceramic sprung disc.  CL - Sprung full face ceramic disc.  CF - Sprung ceramic/Fiber Tough disc.  CK - Sprung full face Kevlar/ceramic disc.  CT - Sprung segmented Kevlar/ceramic disc.  0F - Sprung Organic/Fiber Tough disc.	FF - Sprung Fiber Tough disc.  I4 - 4-puck rigid iron button disc. I6 - 4-puck rigid iron button disc.  KV - Sprung full-face Kevlar disc.  SB - Sprung organic disc.  TZ - Sprung segmented Kevlar disc.  7S - 7.25 in. Twin or single disc (Street)  7R - 7.25 in. Twin or single disc (Race)  7H - 7.25 in. Twin or single disc (Race/Street)  8S - 8.50 in. Twin or single disc (Street)  8R - 8.50 in. Twin or single disc (Race)  8H - 8.50 in. Twin or single disc (Race/Street)
Foot Notes:
A - Aluminum flywheel included. S - Steel flywheel included. T - Fits Tremec transmission only. H - Hydraulic slave cylinder included. K - Upgrade kit including flywheel. R - Rigid disc. D - Dampened disc. C - Custom kit.	P - Clutch/flywheel package deal. M - Modular clutch/flywheel kit. V - Push type conversion. W - Pull type conversion. Y - 6 bolt patern. Z - 8 bolt patern. 1-7 - Unique flywheel identifier.
FLYWHEEL PART# GUIDE: FW-###-AL
AL - Aluminum SF - Steele	FW - Flywheel

Clutch Masters 86-93 Toyota Supra 3.0L Eng T / 86-Up Toyota Supra 1JZ / 91-93 Toyota Supra 3.0L Eng
