Clutch Masters 08240-HRB6-X FX500 Clutch Kits - Clutch Masters 12-15 Honda Civic 2.4L FX-500 6-Puck Rigid Ceramic Clutch Kit for a 2012-2015 Honda Civic Si.
Shipping times vary by Manufacturer
(Can take days or weeks, contact us for an ETA)
Fitment:
| Years | Make | Model | Trim | ||
|---|---|---|---|---|---|
| 2012 - 2015 | Honda | Civic | Si |
Description:
The versatile FX500 System uses either the Power Plus I or Power Plus II Pressure Plate along with a solid center 4 or 6 wing (paddle) Ceramic Button disc. It is designed for maximum holding capacity with no compromises.
Warning: The FX500 is a Solid Hub (rigid) disc that engages and disengages instantly. This is a Race Only clutch.
All stages come as a complete kit including disc, pressure plate, throwout bearing (when applicable), pilot bearing (when applicable), and alignment tool. (Individual components available upon request)
----------------------------------------------------------------------------------------------------------------------------------
| CLUTCH KIT PART# GUIDE: #####-HDTZ-A | |
| Pressure Plate Codes: | |
| SD - Custom Single Disc (725 or 850) DD - Double diaphragm pressure plate HD - Heavy duty pressure plate |
HR - High rev pressure plate TD - Twin Disc |
| Disc Codes: | |
| 00 - Sprung steel-backed organic disc B4 - 4-puck rigid ceramic disc. B5 - 5-puck rigid ceramic disc. B6 - 6-puck rigid ceramic disc. BL - Rigid full face ceramic disc. 0C - Sprung Organic/Ceramic disc. C4 - 4-puck ceramic sprung disc. C6 - 6-puck ceramic sprung disc. CL - Sprung full face ceramic disc. CF - Sprung ceramic/Fiber Tough disc. CK - Sprung full face Kevlar/ceramic disc. CT - Sprung segmented Kevlar/ceramic disc. 0F - Sprung Organic/Fiber Tough disc. |
FF - Sprung Fiber Tough disc. |
| Foot Notes: | |
| A - Aluminum flywheel included. S - Steel flywheel included. T - Fits Tremec transmission only. H - Hydraulic slave cylinder included. K - Upgrade kit including flywheel. R - Rigid disc. D - Dampened disc. C - Custom kit. |
P - Clutch/flywheel package deal. M - Modular clutch/flywheel kit. V - Push type conversion. W - Pull type conversion. Y - 6 bolt patern. Z - 8 bolt patern. 1-7 - Unique flywheel identifier. |
| FLYWHEEL PART# GUIDE: FW-###-AL | |
| AL - Aluminum SF - Steele |
FW - Flywheel |

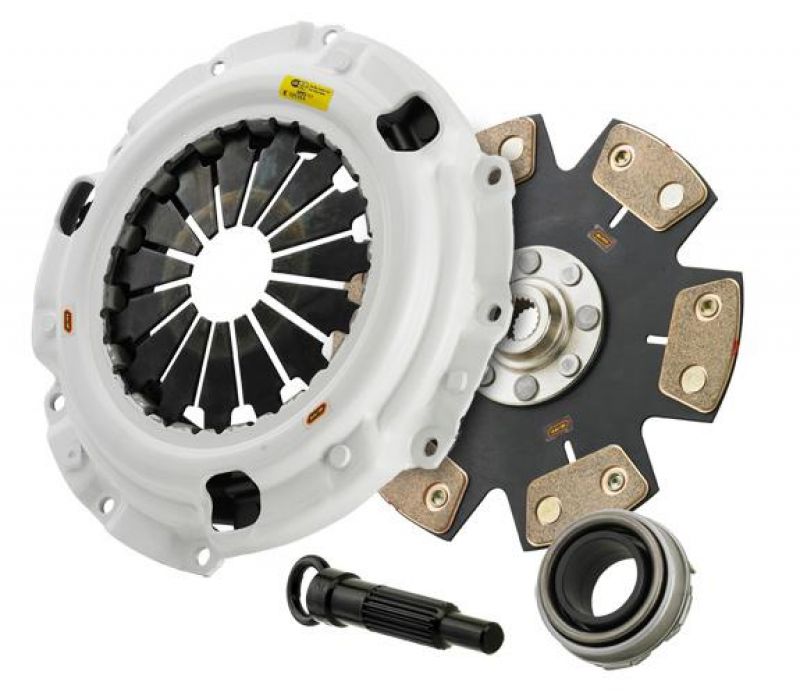

Clutch Masters 12-15 Honda Civic 2.4L FX-500 6-Puck Rigid Ceramic Clutch Kit
