Clutch Masters 15738-HD00-X FX100 Clutch Kits - Clutch Masters 12-14 Scion FRS 2.0L 6-Speed FX100 Clutch Kit w/o Flywheel for a 2013-2017 Subaru BRZ Limited, 2013-2017 Subaru BRZ Premium, 2015-2015 Subaru BRZ Series.Blue, 2016-2016 Subaru BRZ Series.HyperBlue, 2017-2017 Toyota 86 Base, 2017-2017 Toyota 86 Special Edition and 2013-2016 Scion FR-S Base.
Shipping times vary by Manufacturer
(Can take days or weeks, contact us for an ETA)
Fitment:
| Years | Make | Model | Trim | ||
|---|---|---|---|---|---|
| 2013 - 2017 | Subaru | BRZ | Limited | ||
| 2013 - 2017 | Subaru | BRZ | Premium | ||
| 2015 - 2015 | Subaru | BRZ | Series.Blue | ||
| 2016 - 2016 | Subaru | BRZ | Series.HyperBlue | ||
| 2017 - 2017 | Toyota | 86 | Base | ||
| 2017 - 2017 | Toyota | 86 | Special Edition | ||
| 2013 - 2016 | Scion | FR-S | Base |
Description:
The FX100 System uses the Power Plus I Pressure Plate with a custom heavy-duty Steel Back Organic friction disc. This clutch is engineered for heavy-duty street use. It is specifically designed for extended wear and additional clamping force for the enthusiast who has added an exhaust system, an intake system, up to 50hp NO2 upgrade, or other non-forced induction external bolt-ons. It features only slightly increased pedal pressure, longer life than stock, and normal clutch feel during engagement and disengagement for a very smooth operation.

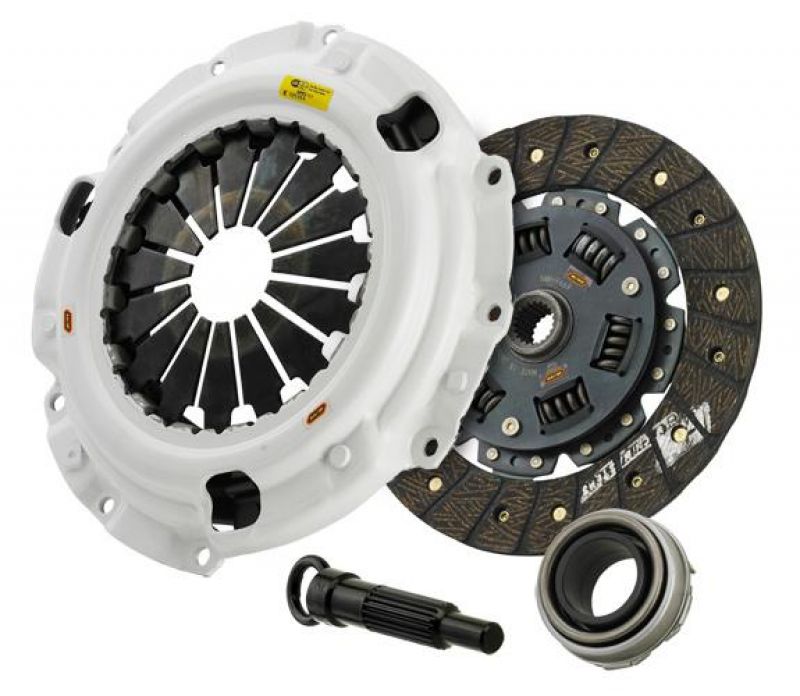

All stages come as a complete kit including disc, pressure plate, throwout bearing (when applicable), pilot bearing (when applicable), and alignment tool. (Individual components available upon request)
----------------------------------------------------------------------------------------------------------------------------------
| CLUTCH KIT PART# GUIDE: #####-HDTZ-A | |
| Pressure Plate Codes: | |
| SD - Custom Single Disc (725 or 850) DD - Double diaphragm pressure plate HD - Heavy duty pressure plate |
HR - High rev pressure plate TD - Twin Disc |
| Disc Codes: | |
| 00 - Sprung steel-backed organic disc B4 - 4-puck rigid ceramic disc. B5 - 5-puck rigid ceramic disc. B6 - 6-puck rigid ceramic disc. BL - Rigid full face ceramic disc. 0C - Sprung Organic/Ceramic disc. C4 - 4-puck ceramic sprung disc. C6 - 6-puck ceramic sprung disc. CL - Sprung full face ceramic disc. CF - Sprung ceramic/Fiber Tough disc. CK - Sprung full face Kevlar/ceramic disc. CT - Sprung segmented Kevlar/ceramic disc. 0F - Sprung Organic/Fiber Tough disc. |
FF - Sprung Fiber Tough disc. |
| Foot Notes: | |
| A - Aluminum flywheel included. S - Steel flywheel included. T - Fits Tremec transmission only. H - Hydraulic slave cylinder included. K - Upgrade kit including flywheel. R - Rigid disc. D - Dampened disc. C - Custom kit. |
P - Clutch/flywheel package deal. M - Modular clutch/flywheel kit. V - Push type conversion. W - Pull type conversion. Y - 6 bolt patern. Z - 8 bolt patern. 1-7 - Unique flywheel identifier. |
| FLYWHEEL PART# GUIDE: FW-###-AL | |
| AL - Aluminum SF - Steele |
FW - Flywheel |
Clutch Masters 12-14 Scion FRS 2.0L 6-Speed FX100 Clutch Kit w/o Flywheel
