Clutch Masters FX250 Clutch Kits (06054-HD0F) 91-98 240SX LE / 91-98 240SX Base / 91-98 240SX SE

Clutch Masters 06054-HD0F FX250 Clutch Kits - Clutch Masters FX250 Clutch Kit 89-98 Nissan 240SX SRDET & 240SX Trans. / 91-98 Nissan 240SX 2.4L for a 1991-1998 Nissan 240SX LE, 1991-1998 Nissan 240SX Base and 1991-1998 Nissan 240SX SE.

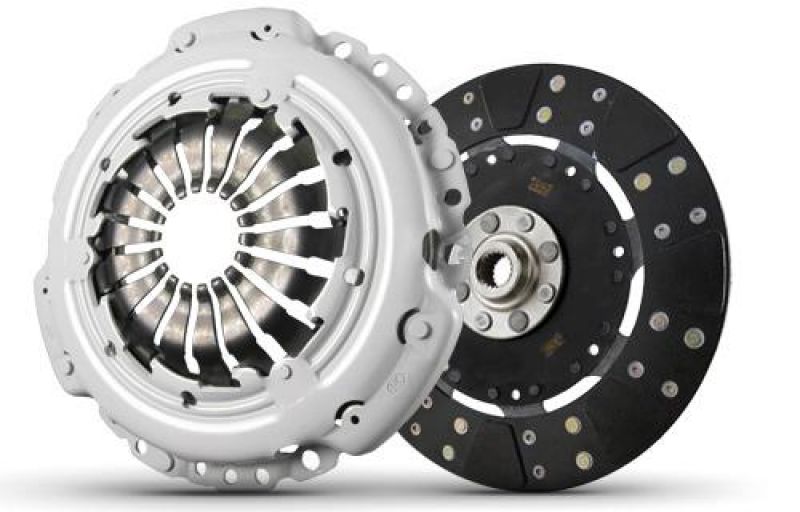

Clutch Masters FX250 Clutch Kits 06054-HD0F Image 1

Image(s) for display purposes only. Actual product may vary.

Manufacturer: Clutch Masters

Product: Clutch Masters FX250 Clutch Kits

Part Number: 06054-HD0F

UPC: 06054-HD0F

MSRP: $625.00

$531.25

Free Shipping (Continental US)

New with manufacturer warranty

Availability: SHIPS FROM MANUFACTURER
Shipping times vary by Manufacturer
(Can take days or weeks, contact us for an ETA)

Have a question regarding this product? Contact us.

Fitment:

NOTES: Clutch Masters FX250 Clutch Kit 89-98 Nissan 240SX SRDET & 240SX Trans. / 91-98 Nissan 240SX 2.4L

Years	Make	Model	Trim
1991 - 1992	Nissan	240SX	LE
1991 - 1993	Nissan	240SX	Base
1991 - 1998	Nissan	240SX	SE
1995 - 1998	Nissan	240SX	Base
1997 - 1998	Nissan	240SX	LE

Description:

The FX250 System uses the Power Plus I Pressure Plate and a hybrid combination of Clutch Masters New Formula Button on one side and a heavy-duty Steel Back Organic friction lining on the other. This clutch is designed for the street enthusiast or weekend racer who plans to abuse their vehicle on an occasional basis and have a spirited driving style. The FX250 clutch system has a higher holding capacity than a traditional full faced Kevlar without compromising the street friendly characteristics Clutch Masters is known for. *

Formula button/organic multi-friction disc with 70% increase in holding capacity.

All stages come as a complete kit including disc, pressure plate, throwout bearing (when applicable), pilot bearing (when applicable), and alignment tool. (Individual components available upon request)

*Organic/ Kevlar/ Formula Button Clutch kits are expected and tend to have a higher life expectancy than OEM, however not guaranteed. Improper Installation, Driving style, performance upgrades, Break in procedure and light weight flywheels will effect and have a role in determining the life expectancy of the clutch kit.

----------------------------------------------------------------------------------------------------------------------------------

CLUTCH KIT PART# GUIDE: #####-HDTZ-A
Pressure Plate Codes:
SD - Custom Single Disc (725 or 850) DD - Double diaphragm pressure plate HD - Heavy duty pressure plate	HR - High rev pressure plate TD - Twin Disc
Disc Codes:
00 - Sprung steel-backed organic disc B4 - 4-puck rigid ceramic disc. B5 - 5-puck rigid ceramic disc. B6 - 6-puck rigid ceramic disc. BL - Rigid full face ceramic disc. 0C - Sprung Organic/Ceramic disc. C4 - 4-puck ceramic sprung disc. C6 - 6-puck ceramic sprung disc. CL - Sprung full face ceramic disc. CF - Sprung ceramic/Fiber Tough disc. CK - Sprung full face Kevlar/ceramic disc. CT - Sprung segmented Kevlar/ceramic disc. 0F - Sprung Organic/Fiber Tough disc.	FF - Sprung Fiber Tough disc. I4 - 4-puck rigid iron button disc. I6 - 4-puck rigid iron button disc. KV - Sprung full-face Kevlar disc. SB - Sprung organic disc. TZ - Sprung segmented Kevlar disc. 7S - 7.25 in. Twin or single disc (Street) 7R - 7.25 in. Twin or single disc (Race) 7H - 7.25 in. Twin or single disc (Race/Street) 8S - 8.50 in. Twin or single disc (Street) 8R - 8.50 in. Twin or single disc (Race) 8H - 8.50 in. Twin or single disc (Race/Street)
Foot Notes:
A - Aluminum flywheel included. S - Steel flywheel included. T - Fits Tremec transmission only. H - Hydraulic slave cylinder included. K - Upgrade kit including flywheel. R - Rigid disc. D - Dampened disc. C - Custom kit.	P - Clutch/flywheel package deal. M - Modular clutch/flywheel kit. V - Push type conversion. W - Pull type conversion. Y - 6 bolt patern. Z - 8 bolt patern. 1-7 - Unique flywheel identifier.
FLYWHEEL PART# GUIDE: FW-###-AL
AL - Aluminum SF - Steele	FW - Flywheel

Clutch Masters FX250 Clutch Kit 89-98 Nissan 240SX SRDET & 240SX Trans. / 91-98 Nissan 240SX 2.4L
