Clutch Masters FX300 Clutch Kits (02027-HDTZ-R) 97-05 A4 Base / 03-05 A4 Cabriolet

Clutch Masters 02027-HDTZ-R FX300 Clutch Kits - Clutch Masters 02-05 Audi A4/A4 Quattro 1.8T B6 FX300 Rigid Disc Clutch Kit - 300ft/lbs Torque for a 1997-2005 Audi A4 Base and 2003-2005 Audi A4 Cabriolet.

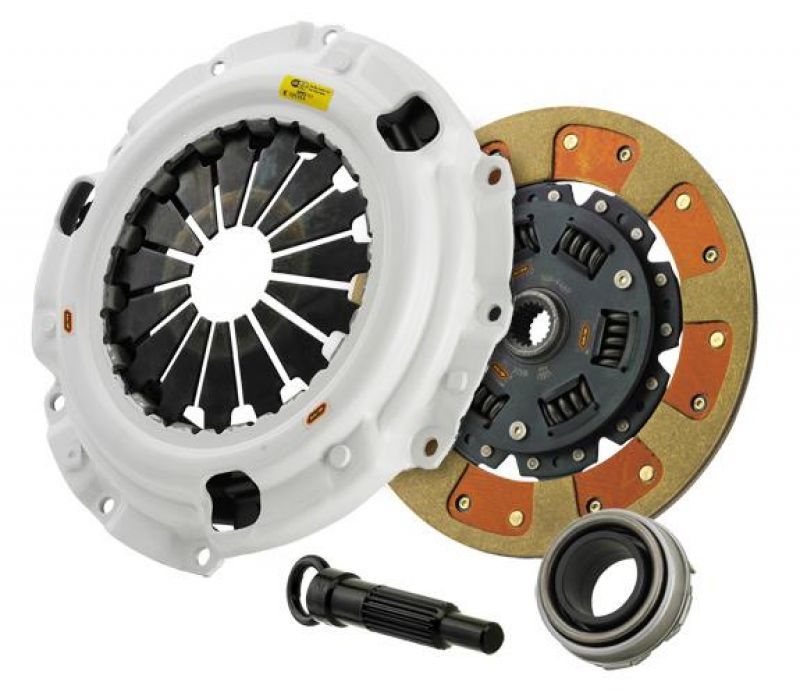

Clutch Masters FX300 Clutch Kits 02027-HDTZ-R Image 1

Image(s) for display purposes only. Actual product may vary.

Manufacturer: Clutch Masters

Product: Clutch Masters FX300 Clutch Kits

Part Number: 02027-HDTZ-R

UPC: 02027-HDTZ-R

MSRP: $837.38

$711.77

Free Shipping (Continental US)

New with manufacturer warranty

Availability: SHIPS FROM MANUFACTURER
Shipping times vary by Manufacturer
(Can take days or weeks, contact us for an ETA)

Have a question regarding this product? Contact us.

Fitment:

NOTES: Clutch Masters 02-05 Audi A4/A4 Quattro 1.8T B6 FX300 Rigid Disc Clutch Kit - 300ft/lbs Torque

Years	Make	Model	Trim
1997 - 2005	Audi	A4	Base
2003 - 2005	Audi	A4	Cabriolet

Description:

The FX300 System uses the Power Plus I Pressure Plate with a Steel Back Segmented Kevlar disc. This clutch is designed for the ultimate street enthusiast or weekend racer running a normally aspirated car equipped with cylinder head work and/or hotter cam(s), or with medium-boost turbo or super-charger, or up to 100hp NO2. The FX300 features only slightly increased pedal pressure, long life disc and positive engagement.

**NOT RECOMMENDED FOR ROAD RACING**

All stages come as a complete kit including disc, pressure plate, throwout bearing (when applicable), pilot bearing (when applicable), and alignment tool. (Individual components available upon request)

----------------------------------------------------------------------------------------------------------------------------------

CLUTCH KIT PART# GUIDE: #####-HDTZ-A
Pressure Plate Codes:
SD - Custom Single Disc (725 or 850) DD - Double diaphragm pressure plate HD - Heavy duty pressure plate	HR - High rev pressure plate TD - Twin Disc
Disc Codes:
00 - Sprung steel-backed organic disc B4 - 4-puck rigid ceramic disc. B5 - 5-puck rigid ceramic disc. B6 - 6-puck rigid ceramic disc. BL - Rigid full face ceramic disc. 0C - Sprung Organic/Ceramic disc. C4 - 4-puck ceramic sprung disc. C6 - 6-puck ceramic sprung disc. CL - Sprung full face ceramic disc. CF - Sprung ceramic/Fiber Tough disc. CK - Sprung full face Kevlar/ceramic disc. CT - Sprung segmented Kevlar/ceramic disc. 0F - Sprung Organic/Fiber Tough disc.	FF - Sprung Fiber Tough disc. I4 - 4-puck rigid iron button disc. I6 - 4-puck rigid iron button disc. KV - Sprung full-face Kevlar disc. SB - Sprung organic disc. TZ - Sprung segmented Kevlar disc. 7S - 7.25 in. Twin or single disc (Street) 7R - 7.25 in. Twin or single disc (Race) 7H - 7.25 in. Twin or single disc (Race/Street) 8S - 8.50 in. Twin or single disc (Street) 8R - 8.50 in. Twin or single disc (Race) 8H - 8.50 in. Twin or single disc (Race/Street)
Foot Notes:
A - Aluminum flywheel included. S - Steel flywheel included. T - Fits Tremec transmission only. H - Hydraulic slave cylinder included. K - Upgrade kit including flywheel. R - Rigid disc. D - Dampened disc. C - Custom kit.	P - Clutch/flywheel package deal. M - Modular clutch/flywheel kit. V - Push type conversion. W - Pull type conversion. Y - 6 bolt patern. Z - 8 bolt patern. 1-7 - Unique flywheel identifier.
FLYWHEEL PART# GUIDE: FW-###-AL
AL - Aluminum SF - Steele	FW - Flywheel

Clutch Masters 97-05 Audi A4 1.8L T / A4 Quattro 1.8L T / 98-05 VW Passat 1.8L T FX300 Clutch Kit Ri
