Clutch Masters FX400 Clutch Kits (15013-HDCL)

The FX400 System uses the Power Plus I Pressure Plate with a custom, extremely durable, Sprung Ceramic disc. This is the ultimate extreme duty street and/or road/drag racing system. It is available in a 4 or 6 wing (paddle) configuration, with the 4-wing being the more aggressive setup (please specify which type you prefer). The sprung hub design allows for moderate dampening in high-torque applications, rendering it much more streetable than solid or rigid designs. This disc is designed for long life, outstanding holding capacity, and rapid heat dissipation.

Warning: Due to the solid (no Marcel) friction rivet design, the FX400 disc engages very quickly and may chatter slightly in first and reverse. To help alleviate this problem, we only use premium ceramic friction material.

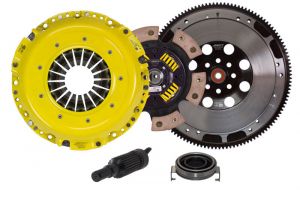

All stages come as a complete kit including disc, pressure plate, throwout bearing (when applicable), pilot bearing (when applicable), and alignment tool. (Individual components available upon request)

----------------------------------------------------------------------------------------------------------------------------------

CLUTCH KIT PART# GUIDE: #####-HDTZ-A
Pressure Plate Codes:
SD - Custom Single Disc (725 or 850) DD - Double diaphragm pressure plate HD - Heavy duty pressure plate	HR - High rev pressure plate TD - Twin Disc
Disc Codes:
00 - Sprung steel-backed organic disc  B4 - 4-puck rigid ceramic disc.  B5 - 5-puck rigid ceramic disc.  B6 - 6-puck rigid ceramic disc.  BL - Rigid full face ceramic disc.  0C - Sprung Organic/Ceramic disc.  C4 - 4-puck ceramic sprung disc.  C6 - 6-puck ceramic sprung disc.  CL - Sprung full face ceramic disc.  CF - Sprung ceramic/Fiber Tough disc.  CK - Sprung full face Kevlar/ceramic disc.  CT - Sprung segmented Kevlar/ceramic disc.  0F - Sprung Organic/Fiber Tough disc.	FF - Sprung Fiber Tough disc.  I4 - 4-puck rigid iron button disc. I6 - 4-puck rigid iron button disc.  KV - Sprung full-face Kevlar disc.  SB - Sprung organic disc.  TZ - Sprung segmented Kevlar disc.  7S - 7.25 in. Twin or single disc (Street)  7R - 7.25 in. Twin or single disc (Race)  7H - 7.25 in. Twin or single disc (Race/Street)  8S - 8.50 in. Twin or single disc (Street)  8R - 8.50 in. Twin or single disc (Race)  8H - 8.50 in. Twin or single disc (Race/Street)
Foot Notes:
A - Aluminum flywheel included. S - Steel flywheel included. T - Fits Tremec transmission only. H - Hydraulic slave cylinder included. K - Upgrade kit including flywheel. R - Rigid disc. D - Dampened disc. C - Custom kit.	P - Clutch/flywheel package deal. M - Modular clutch/flywheel kit. V - Push type conversion. W - Pull type conversion. Y - 6 bolt patern. Z - 8 bolt patern. 1-7 - Unique flywheel identifier.
FLYWHEEL PART# GUIDE: FW-###-AL
AL - Aluminum SF - Steele	FW - Flywheel

Clutch Masters 03-06 Subaru Baja 2.5L SOHC Non Turbo FX400 8-Puck Clutch Kit
