SPL Parts SPL RTAEL FRS Toe Arms - SPL Parts 2013 Subaru BRZ/Toyota 86 / 2015 Subaru WRX/STI Rear Toe Arms w/Eccentric Lockout for a 2008-2014 Subaru Impreza WRX, 2008-2014 Subaru Impreza WRX STI, 2015-2021 Subaru WRX Base, 2015-2021 Subaru WRX Limited, 2015-2021 Subaru WRX Premium, 2015-2015 Subaru WRX STI Launch Edition, 2015-2021 Subaru WRX STI Base, 2015-2021 Subaru WRX STI Limited, 2016-2016 Subaru WRX STI Series.HyperBlue, 2018-2018 Subaru WRX STI Type RA, 2019-2019 Subaru WRX STI S209, 2013-2025 Subaru BRZ Premium, 2013-2025 Subaru BRZ Limited, 2015-2015 Subaru BRZ Series.Blue, 2016-2016 Subaru BRZ Series.HyperBlue, 2017-2017 Subaru BRZ Series.Yellow, 2018-2025 Subaru BRZ TS, 2019-2019 Subaru BRZ Series.Gray, 2017-2017 Toyota 86 Special Edition, 2017-2020 Toyota 86 Base, 2018-2020 Toyota 86 GT, 2019-2019 Toyota 86 TRD Special Edition, 2020-2020 Toyota 86 Hakone Edition, 2022-2025 Toyota GR86 Base, 2022-2025 Toyota GR86 Premium, 2023-2023 Toyota GR86 10th Anniversary Special Edition, 2024-2024 Toyota GR86 TRUENO Edition, 2025-2025 Toyota GR86 Hakone Edition and 2013-2016 Scion FR-S Base.
Coupon Code:OGSavings
WAREHOUSE (Central: 5+)
Generally ships within 1 business day.
Fitment:
| Years | Make | Model | Trim | ||
|---|---|---|---|---|---|
| 2008 - 2014 | Subaru | Impreza | WRX | ||
| 2008 - 2014 | Subaru | Impreza | WRX STI | ||
| 2015 - 2021 | Subaru | WRX | Base | ||
| 2015 - 2021 | Subaru | WRX | Limited | ||
| 2015 - 2021 | Subaru | WRX | Premium | ||
| 2015 - 2015 | Subaru | WRX STI | Launch Edition | ||
| 2015 - 2021 | Subaru | WRX STI | Base | ||
| 2015 - 2021 | Subaru | WRX STI | Limited | ||
| 2016 - 2016 | Subaru | WRX STI | Series.HyperBlue | ||
| 2018 - 2018 | Subaru | WRX STI | Type RA | ||
| 2019 - 2019 | Subaru | WRX STI | S209 | ||
| 2013 - 2019 | Subaru | BRZ | Premium | ||
| 2013 - 2020 | Subaru | BRZ | Limited | ||
| 2015 - 2015 | Subaru | BRZ | Series.Blue | ||
| 2016 - 2016 | Subaru | BRZ | Series.HyperBlue | ||
| 2017 - 2017 | Subaru | BRZ | Series.Yellow | ||
| 2018 - 2018 | Subaru | BRZ | TS | ||
| 2019 - 2019 | Subaru | BRZ | Series.Gray | ||
| 2020 - 2020 | Subaru | BRZ | TS | ||
| 2025 - 2025 | Subaru | BRZ | Limited | ||
| 2025 - 2025 | Subaru | BRZ | Premium | ||
| 2025 - 2025 | Subaru | BRZ | TS | ||
| 2017 - 2017 | Toyota | 86 | Special Edition | ||
| 2017 - 2020 | Toyota | 86 | Base | ||
| 2018 - 2020 | Toyota | 86 | GT | ||
| 2019 - 2019 | Toyota | 86 | TRD Special Edition | ||
| 2020 - 2020 | Toyota | 86 | Hakone Edition | ||
| 2022 - 2025 | Toyota | GR86 | Base | ||
| 2022 - 2025 | Toyota | GR86 | Premium | ||
| 2023 - 2023 | Toyota | GR86 | 10th Anniversary Special Edition | ||
| 2024 - 2024 | Toyota | GR86 | TRUENO Edition | ||
| 2025 - 2025 | Toyota | GR86 | Hakone Edition | ||
| 2013 - 2016 | Scion | FR-S | Base |
Description:

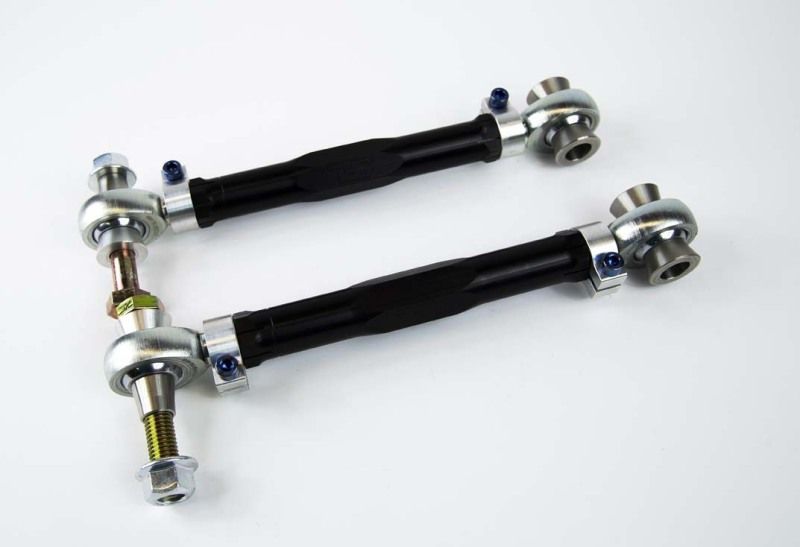

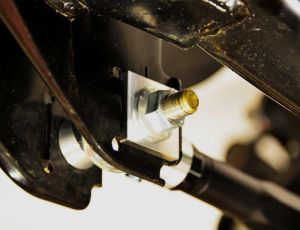

SPL Parts adjustable Rear Toe Arms (RTA) increase stability and response by eliminating bushing deflection while also offering a wide range of toe adjustment. Lowered BRZs, WRXs, and 86s need the adjustment range for correcting rear toe to ensure proper tire wear and handling. Correcting the static toe angle and eliminating the toe change that occurs due to bushing deflection makes a huge improvement to the overall driving experience of the car. Sharper turn-in, improved braking stability, and predictable handling from corner entry to corner exit. The SPL rear toe arms feature 360° clamps instead of jam nuts to make setting the toe angle significantly easier. Simply loosen the two 1/4"-20 titanium screws and turn the center arm to adjust the length. Tightening the screws locks down the arm and won't change your toe setting. OEM eccentric bolts are known to slip during hard cornering, altering your alignment settings and possibly ruining your track day. That's why we've paired the SPL eccentric lockouts and rear adjustable toe arm as a complete kit. The eccentric lockout kit replaces the OEM eccentrics and also allows the toe arms to be unbolted and bolted back on the car while maintaining alignment settings, if needed. Benefits Lightweight: 2.63 lbs (1.19 kg) per Arm (18% Lighter than OEM) Large Toe Adjustability Range Eliminates Bushing Deflection and Toe Change due to Deflection Greatly Improves Stability and Driving Feel Replaces Slip-prone OEM Eccentrics, Locks Down Alignment Easier, On-Car Adjustment + No Jam Nuts Self-Cleaning, US Made, PTFE-Lined FK Bearings Materials Hollow 6061-T6 Aluminum Arms (Anodized Black) 6061-T6 Aluminum Spacers, 360º Clamps, and Lockout Plates 304 Stainless Steel Insert Spacers Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue)
SPL Parts adjustable Rear Toe Arms (RTA) for the Scion FR-S and Subaru BRZ platform increase stability and response by eliminating bushing deflection and offer a wide range of toe adjustment. These arms are designed for use in high performance street and race vehicles
